BOM (Bill Off Materials)
∙ 1x Seeed XIAO ESP32C3
∙ 4x MX-Style Keyboard Switches
∙ 4x White Blank DSA Keycaps
∙ 1x 2.25in TFT Screen
∙ 1x 3.3V Piezo Buzzer
∙ 1x 2.54mm 8 Pin Male Header
∙ 8x M3x5x4 Heatset Inserts
∙ 4x M3x8mm Screws
∙ 4x M3x16mm Screws

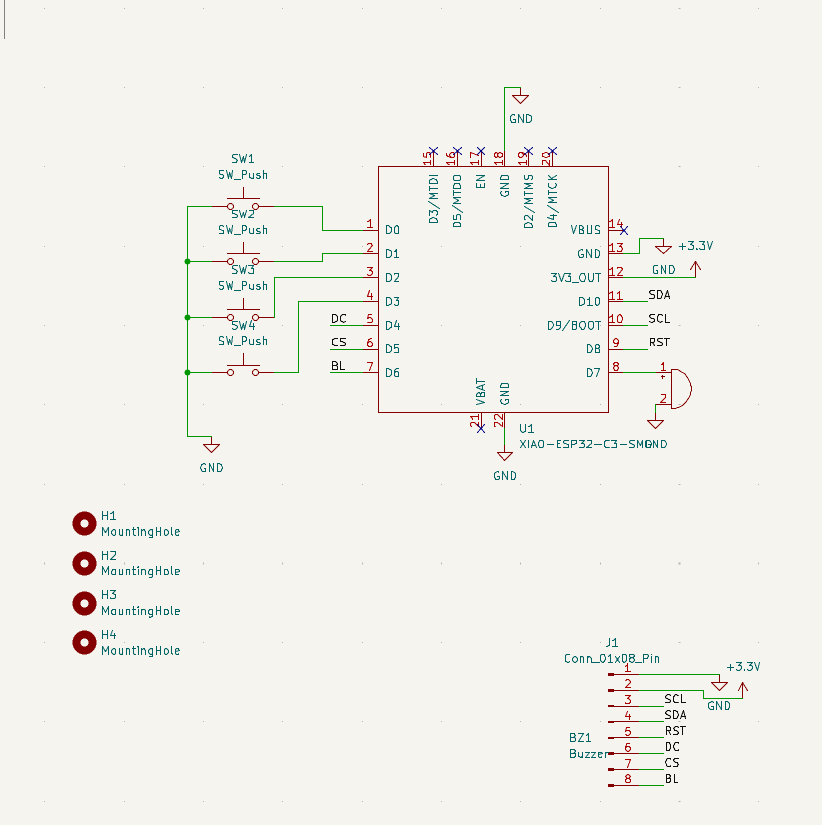

PCB schematic:

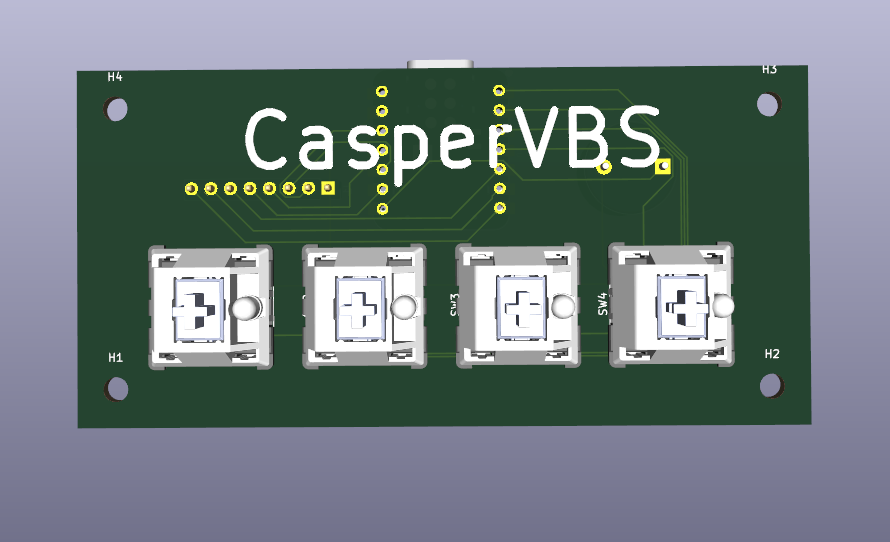

PCB:

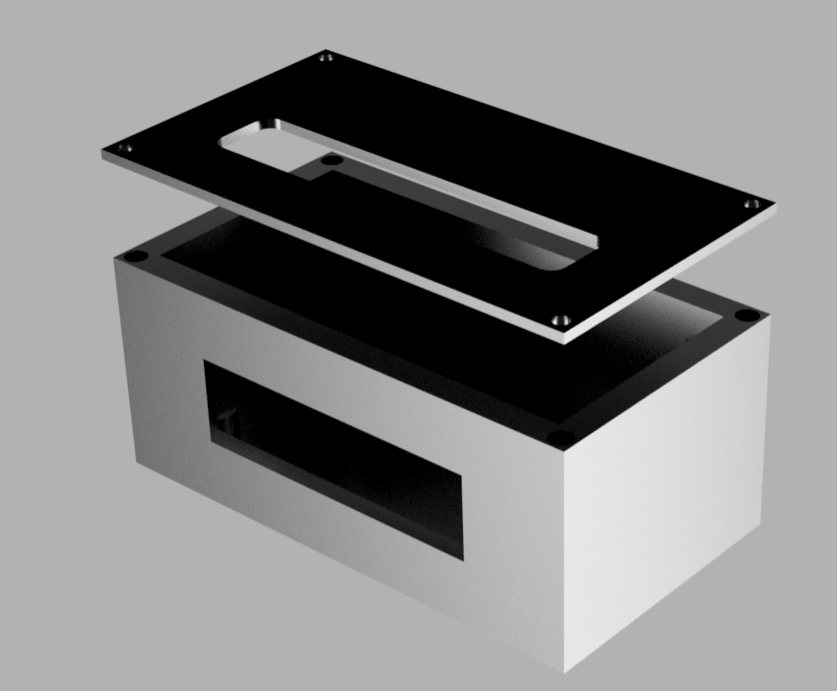

3d printed case:
